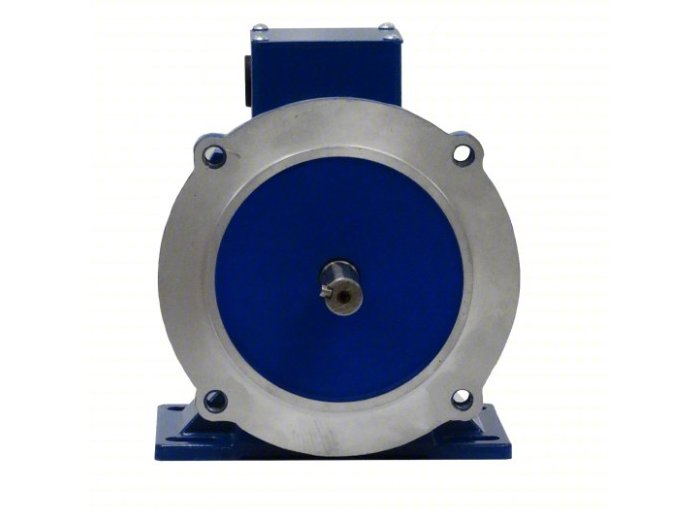

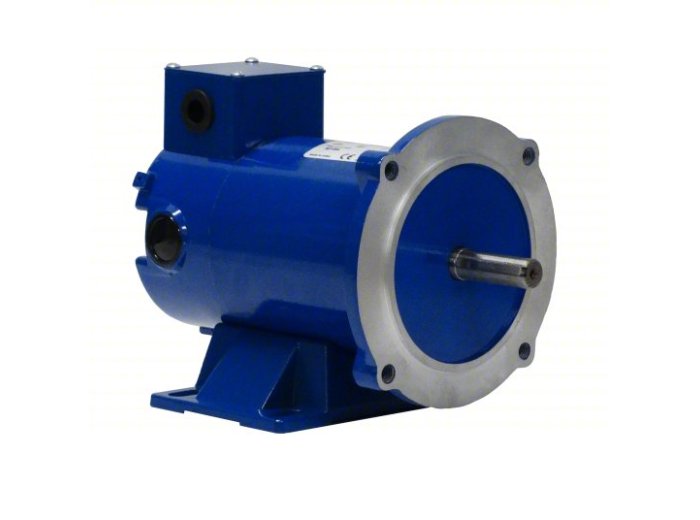

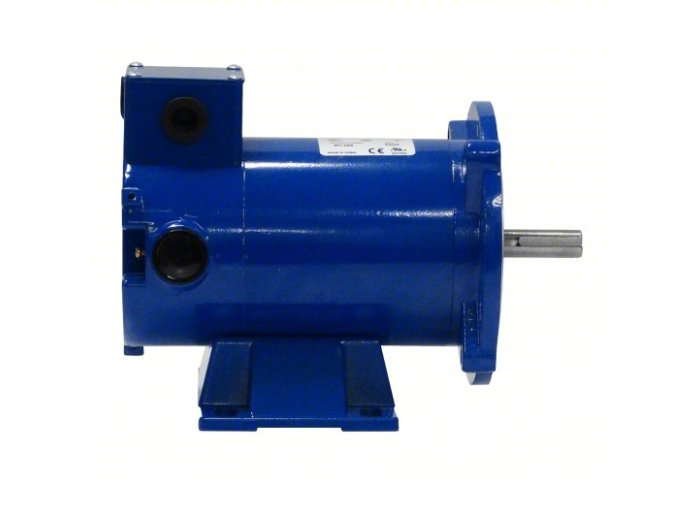

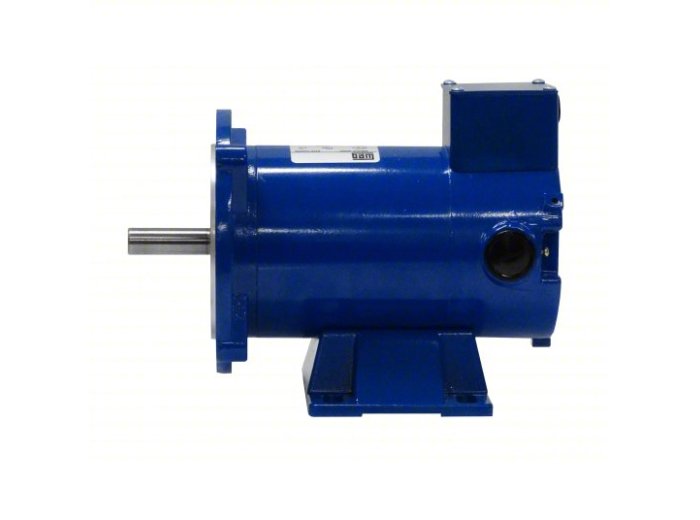

WEG DC Permanent Magnet Motor
SKU: 825DU2
In Stock
These general purpose DC motors have a NEMA frame designation with standard dimensions which allows for drop-in replacement of motors from multiple suppliers with no modifications required to existing installations.
Ambient Temperature - Maximum:
40 ?C
Shaft Length:
1-7/8 in
Mounting Type:
Rigid Base; C-Face
Nameplate Horsepower:
1/4 hp
Nameplate Service Factor:
1
Shaft Diameter:
5/8 in
Bearing Type:
Ball
Overall Length:
11-11/16 in
Weight:
18 lb
Standards:
CE; CSA; UL
Product Type:
DC Motor
Shaft Design:
Keyed
Output Shaft (Dia x L):
5/8 in x 1-7/8 in
Mfr. Model:
MT-065
Application:
General Purpose
Motor Design:
Permanent Magnet
Nameplate RPM @ 60 Hz:
1,750 RPM
Nameplate Voltage:
12V DC
Frame Size:
56C
Insulation Class:
F
Duty Cycle:
Continuous
Motor Enclosure Type:
Totally Enclosed Non-Ventilated
Frame Material:
Steel
Brush Type:
Replaceable Brushes
Length Less Shaft:
9-13/16 in
Bolt Circle Diameter:
5-7/8 in
Includes:
Removable Base
Mounting Stud Thread Size:
3/8"-16
Mounting Stud Pattern:
4-3/8"-16
Country of Origin:
China (subject to change)
